Axiom™ Ultrasonic Removal System
Rapidly Melts, Fragments & Selectively Removes Cement in Hip & Knee Revisions
The Axiom™ Ultrasonic Removal System uses adaptive ultrasonic energy to melt polymethyl methacrylate bone cement (PMMA) at the blade tip, minimizing leverage on bone. The high frequency softens cement allowing selective and rapid cement removal, preserving the surrounding patient anatomy.
Key Benefits:
- Cement removal with minimal force
- Enhanced procedural guidance
- Real-time audible & tactile feedback
Features:
- Individual blade optimization stored in console
- Continuous or pulsed ultrasonic power
- Tailored power settings from 0-100%
Axiom

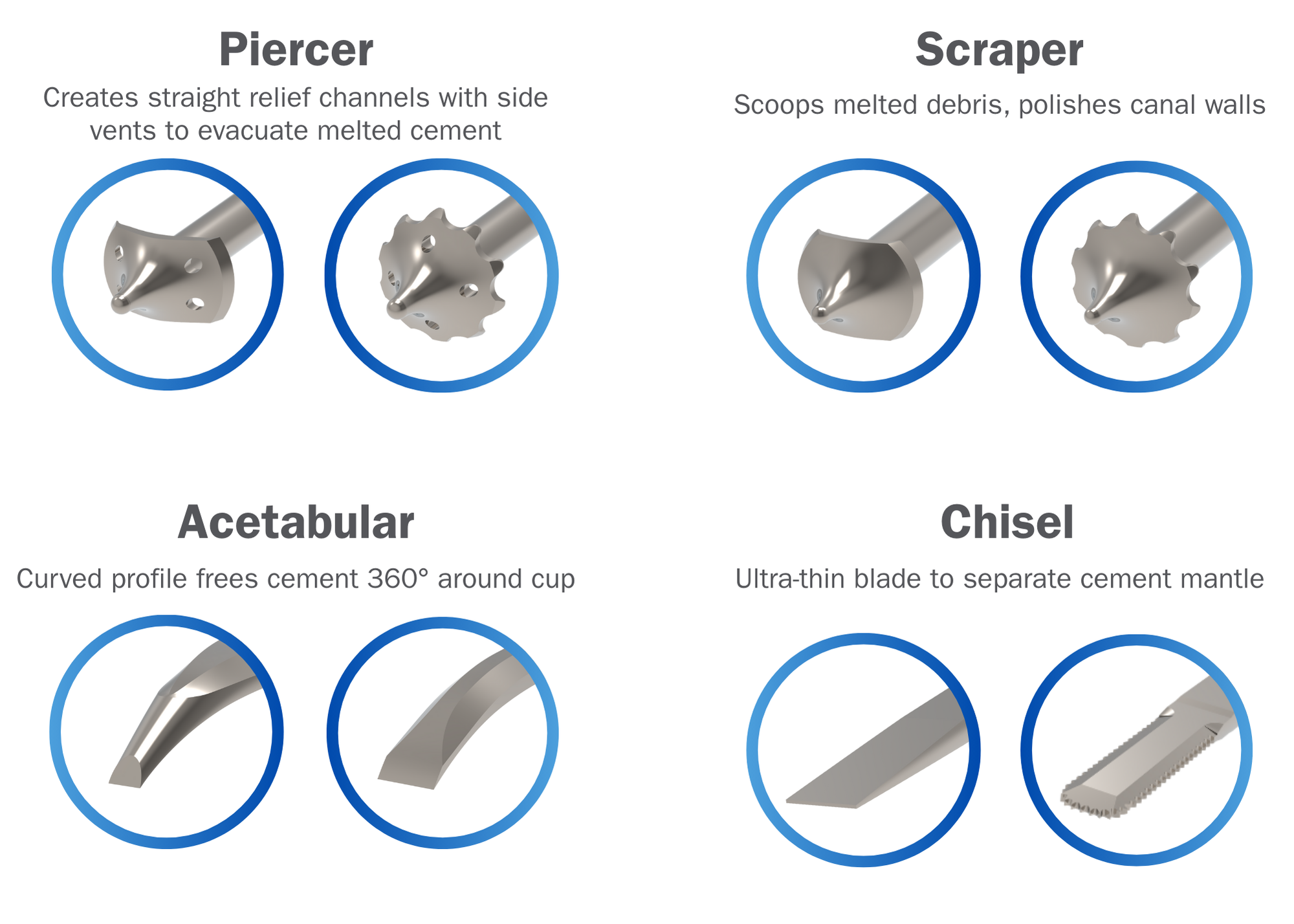

| Axiom™ Blade Options | |||
|---|---|---|---|
| Product Number | Item Description | O.D. (mm) | Length (mm) |
| BRAXM-FP6LH | Full Piercer 6×270, Helical | 6 | 270 |
| BRAXM-FP10S | Full Piercer 10×100 | 10 | 100 |
| BRAXM-FP10M | Ful Piercer 10×190 | 10 | 190 |
| BRAXM-FP10L | Full Piercer 10×300 | 10 | 300 |
| BRAXM-HP10S | Half Piercer 10×100 | 10 | 100 |
| BRAXM-HP10M | Half Piercer 10×190 | 10 | 190 |
| BRAXM-FS6S | Full Scraper 6×100 | 6 | 100 |
| BRAXM-FS6M | Full Scraper 6×190 | 6 | 190 |
| BRAXM-FS8S | Full Scraper 8×100 | 8 | 100 |
| BRAXM-FS8M | Full Scraper 8×190 | 8 | 190 |
| BRAXM-HS6S | Half Scraper 6×100 | 6 | 100 |
| BRAXM-HS6M | Half Scraper 6×190 | 6 | 190 |
| BRAXM-HS8S | Half Scraper 8×100 | 8 | 100 |
| BRAXM-HS8M | Half Scraper 8×190 | 8 | 190 |
| BRAXM-HS10S | Half Scraper 10×100 | 10 | 100 |
| BRAXM-AG6S | Acetabular Gouge 6×100 | 6 | 100 |
| BRAXM-AG6L | Acetabular Gouge 6×120 | 6 | 120 |
| BRAXM-AG16M | Acetabular Gouge 16×110 | 16 | 110 |
| BRAXM-C5R | Chisel 5.5×100 Round | 5.5 | 100 |
| BRAXM-C6R | Chisel 6x100Round | 6 | 100 |
| BRAXM-C6F | Chisel 6×100 Flat | 6 | 100 |
| BRAXM-EXT | Extender | – | 125 |
| Axiom™ System Components | |||
| Product Number | Item Description | ||
| BRAXM-UGK | Axiom Ultrasonic Generator Kit | ||
| BRAXM-HM | Ultrasonic Handle | ||
| BRAXM-UG | Ultrasonic Generator | ||
| BRAXM-CWW | Counter Wrench + 8MM | ||
| BRAXM-STC | Sterilization Case | ||
| BRAXM-FS | Foot Pedal | ||
