Steinmann Pins
Steinmann Pins
Fabricated from precision ground 316L implant grade stainless steel.

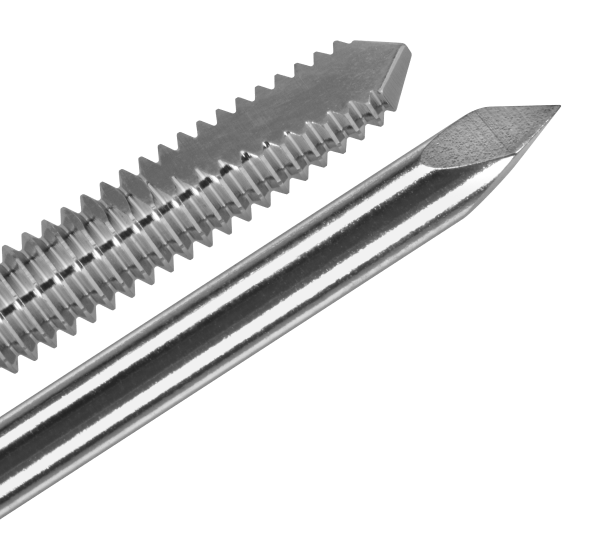

Brasseler USA® Surgical is pleased to offer a thorough line of Steinmann Pins. Our Steinmann Pins are designed and manufactured in the USA to very rigid specifications. They are fabricated from precision ground 316L implant grade stainless steel (ASTM F 138) and are subjected to strenuous inspection programs to assure exceptional results. We are pleased to provide only the best quality products for our customers at an exceptional value.
9-inch Steinmann Pins

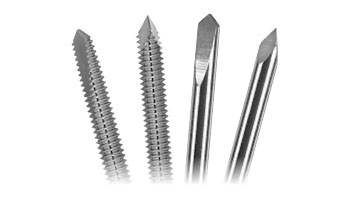

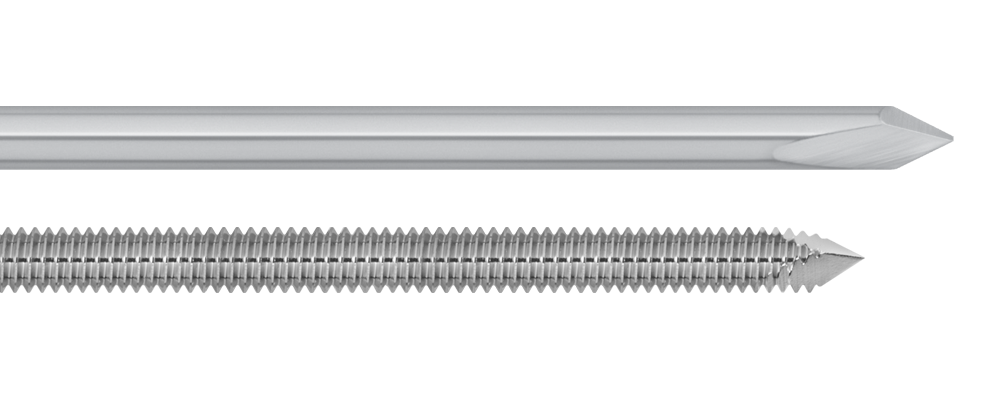

Our 9-inch Steinmann Pins are offered as smooth/plain or fully threaded and are available in a variety of point styles.

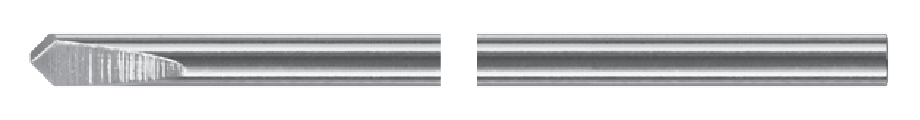

Single Trocar
3-Sided Point; Point on One End

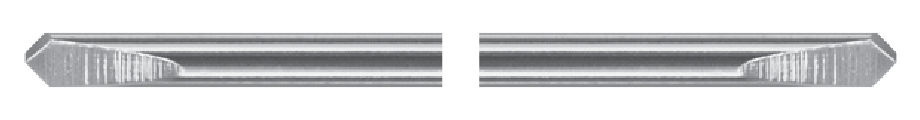

Double Trocar
3-Sided Point; Point on Both Ends

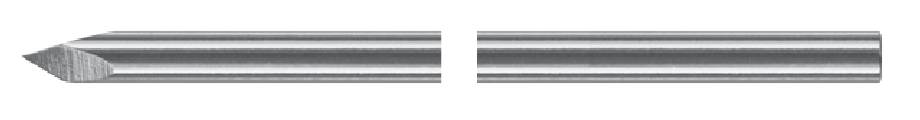

Single Diamond
2-Sided Point; Point on One End

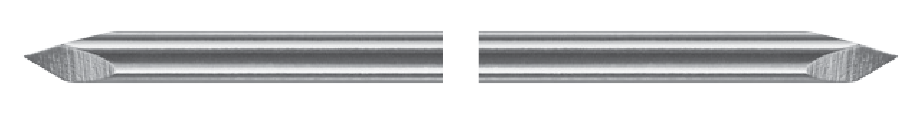

Double Diamond
2-Sided Point; Point on Both Ends
Single Trocar
3-Sided Point; Point on One End
Double Trocar
3-Sided Point; Point on Both Ends
Single Diamond
2-Sided Point; Point on One End
Double Diamond
2-Sided Point; Point on Both Ends
12-inch Steinmann Pins
Our 12-inch Steinmann Pin is compatible with the Biomet® Retrograde Femoral Nail System and features a 90 degree angle point.
Single Diamond
2-Sided Point; Point on One End
Brasseler USA Steinmann Pins
| 9 Inch Smooth Steinmann Pins | ||||
|---|---|---|---|---|
| Fabricated from 316L stainless steel | ||||
| Point Style | Brasseler Part No. | Diameter | ||
| Non-Sterile
(6 per pack) | Sterile
(1 per pack) | mm | in | |
| Single
Trocar | KM168-19-56 | KM168-19-56S | 2.0 | 5/64″ |
| KM168-19-33 | KM168-19-33S | 2.4 | 3/32″ | |
| KM168-19-76 | KM168-19-76S | 2.8 | 7/64″ | |
| KM168-19-18 | KM168-19-18S | 3.2 | 1/8″ | |
| KM168-19-96 | KM168-19-96S | 3.6 | 9/64″ | |
| KM168-19-53 | KM168-19-53S | 4.0 | 5/32″ | |
| KM168-19-31 | KM168-19-31S | 4.8 | 3/16″ | |
| Double
Trocar | KM168-29-56 | KM168-29-56S | 2.0 | 5/64″ |
| KM168-29-33 | KM168-29-33S | 2.4 | 3/32″ | |
| KM168-29-76 | KM168-29-76S | 2.8 | 7/64″ | |
| KM168-29-18 | KM168-29-18S | 3.2 | 1/8″ | |
| KM168-29-96 | KM168-29-96S | 3.6 | 9/64″ | |
| KM168-29-53 | KM168-29-53S | 4.0 | 5/32″ | |
| KM168-29-31 | KM168-29-31S | 4.8 | 3/16″ | |
| Single
Diamond | KM168-39-56 | KM168-39-56S | 2.0 | 5/64″ |
| KM168-39-33 | KM168-39-33S | 2.4 | 3/32″ | |
| KM168-39-76 | KM168-39-76S | 2.8 | 7/64″ | |
| KM168-39-18 | KM168-39-18S | 3.2 | 1/8″ | |
| KM168-39-96 | KM168-39-96S | 3.6 | 9/64″ | |
| KM168-39-53 | KM168-39-53S | 4.0 | 5/32″ | |
| KM168-39-31 | KM168-39-31S | 4.8 | 3/16″ | |
| Double
Diamond | KM168-49-56 | KM168-49-56S | 2.0 | 5/64″ |
| KM168-49-33 | KM168-49-33S | 2.4 | 3/32″ | |
| KM168-49-76 | KM168-49-76S | 2.8 | 7/64″ | |
| KM168-49-18 | KM168-49-18S | 3.2 | 1/8″ | |
| KM168-49-96 | KM168-49-96S | 3.6 | 9/64″ | |
| KM168-49-53 | KM168-49-53S | 4.0 | 5/32″ | |
| KM168-49-31 | KM168-49-31S | 4.8 | 3/16″ | |
| 9 Inch Fully Threaded Steinmann Pins | ||||
|---|---|---|---|---|
| Fabricated from 316L stainless steel | ||||
| Point Style | Brasseler Part No. | Diameter | ||
| Non-Sterile
(6 per pack) | Sterile
(1 per pack) | mm | in | |
| Single
Trocar | KM169-19-56 | KM169-19-56S | 2.0 | 5/64″ |
| KM169-19-33 | KM169-19-33S | 2.4 | 3/32″ | |
| KM169-19-76 | KM169-19-76S | 2.8 | 7/64″ | |
| KM169-19-18 | KM169-19-18S | 3.2 | 1/8″ | |
| KM169-19-96 | KM169-19-96S | 3.6 | 9/64″ | |
| KM169-19-53 | KM169-19-53S | 4.0 | 5/32″ | |
| KM169-19-31 | KM169-19-31S | 4.8 | 3/16″ | |
| Double
Trocar | KM169-29-56 | KM169-29-56S | 2.0 | 5/64″ |
| KM169-29-33 | KM169-29-33S | 2.4 | 3/32″ | |
| KM169-29-76 | KM169-29-76S | 2.8 | 7/64″ | |
| KM169-29-18 | KM169-29-18S | 3.2 | 1/8″ | |
| KM169-29-96 | KM169-29-96S | 3.6 | 9/64″ | |
| KM169-29-53 | KM169-29-53S | 4.0 | 5/32″ | |
| KM169-29-31 | KM169-29-31S | 4.8 | 3/16″ | |
| Single
Diamond | KM169-39-56 | KM169-39-56S | 2.0 | 5/64″ |
| KM169-39-33 | KM169-39-33S | 2.4 | 3/32″ | |
| KM169-39-76 | KM169-39-76S | 2.8 | 7/64″ | |
| KM169-39-18 | KM169-39-18S | 3.2 | 1/8″ | |
| KM169-39-96 | KM169-39-96S | 3.6 | 9/64″ | |
| KM169-39-53 | KM169-39-53S | 4.0 | 5/32″ | |
| KM169-39-31 | KM169-39-31S | 4.8 | 3/16″ | |
| Double
Diamond | KM169-49-56 | KM169-49-56S | 2.0 | 5/64″ |
| KM169-49-33 | KM169-49-33S | 2.4 | 3/32″ | |
| KM169-49-76 | KM169-49-76S | 2.8 | 7/64″ | |
| KM169-49-18 | KM169-49-18S | 3.2 | 1/8″ | |
| KM169-49-96 | KM169-49-96S | 3.6 | 9/64″ | |
| KM169-49-53 | KM169-49-53S | 4.0 | 5/32″ | |
| KM169-49-31 | KM169-49-31S | 4.8 | 3/16″ | |
| 12 Inch Smooth Double Diamond Steinmann Pin | |||
|---|---|---|---|
| Fabricated from 316L stainless steel | |||
| Brasseler Part No. | OEM Catalog Number | Diameter | |
| Sterile (1 Per Pack) | Zimmer® Biomet® | mm | in |
| ZB27-362093 | 7-362093 | 0.8 | 5/32 |
Steam Sterilization …. Type Minimum Temperature / Minimum Exposure Time / Minimum Dry Time
Pre-Vacuum (Wrapped) …. 270°F (132°C) / 4 minutes / 30 minutes
Gravity (Wrapped) …. 270°F (132°C) / 15 minutes / 30 minutes
- All cycles require a minimum of 30 minutes dry time.
- Observe AAMI and hospital guidelines for steam sterilization and the sterilizer manufacturer’s written instructions for cycle parameters and load configurations.
